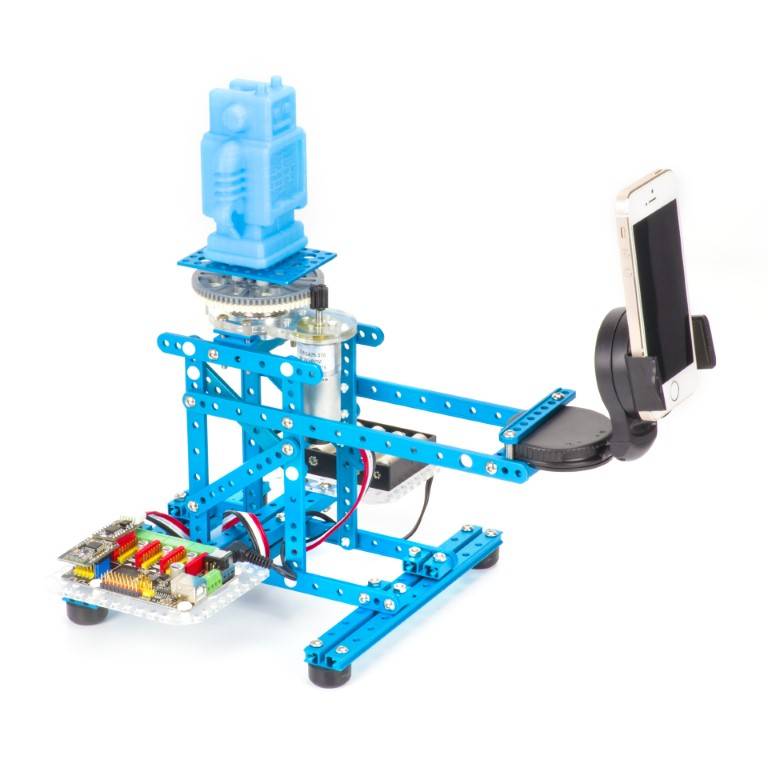

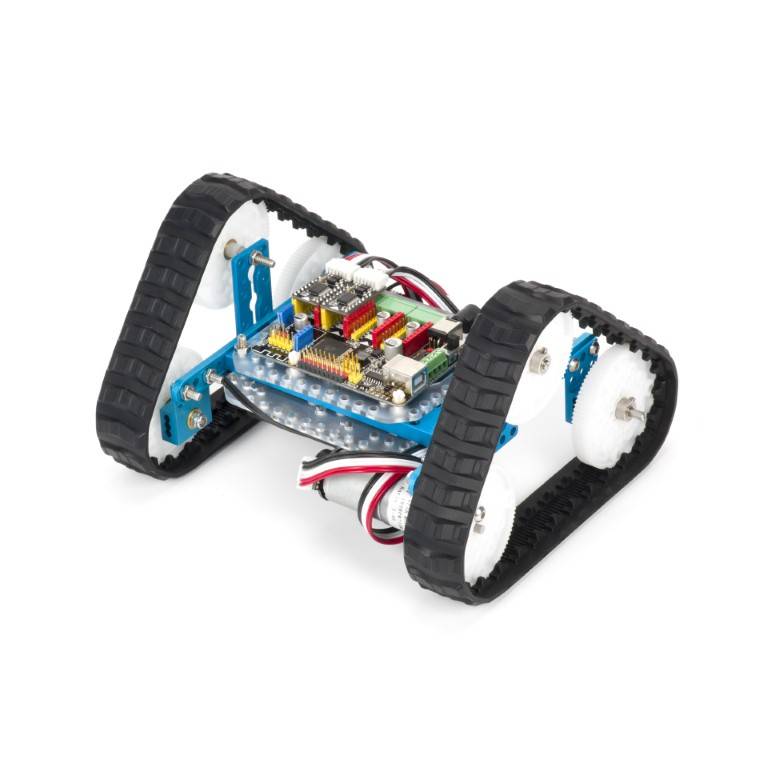

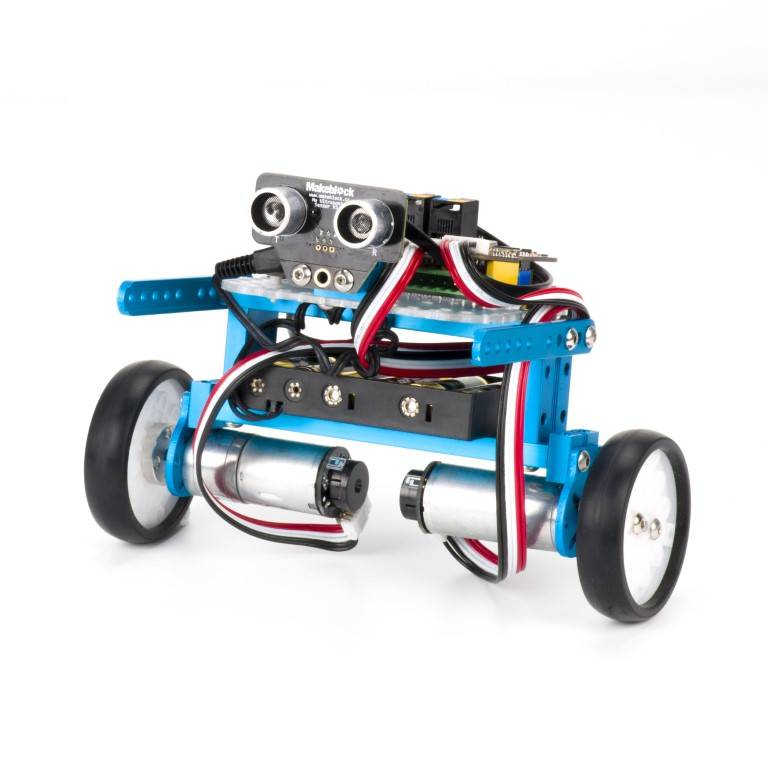

Makeblock Ultimate Robot Kit V2.0

Ultimate 2.0 is a 10-in-1 robot kit developed based on the Makeblock platform with rich features and strong compatibility. Whether you are an enthusiast of Raspberry Pi or Arduino, a mechanical or electronics engineer, a teacher, or a student, it helps you quickly learn the knowledge and skills of mechanical structures, electronic modules, and programming.


Based on Arduino Mega solution that has 550+ mechanical parts and electronic modules that allow you to build 10+ models from one set.

Ultimate 2.0 features advanced motion control that can drive multiple motors and servos at the same time, and it also has great compatibility with Arduino & Raspberry Pi so that you can build a range of complex designs.


• 10 in 1 Robot Building Toys

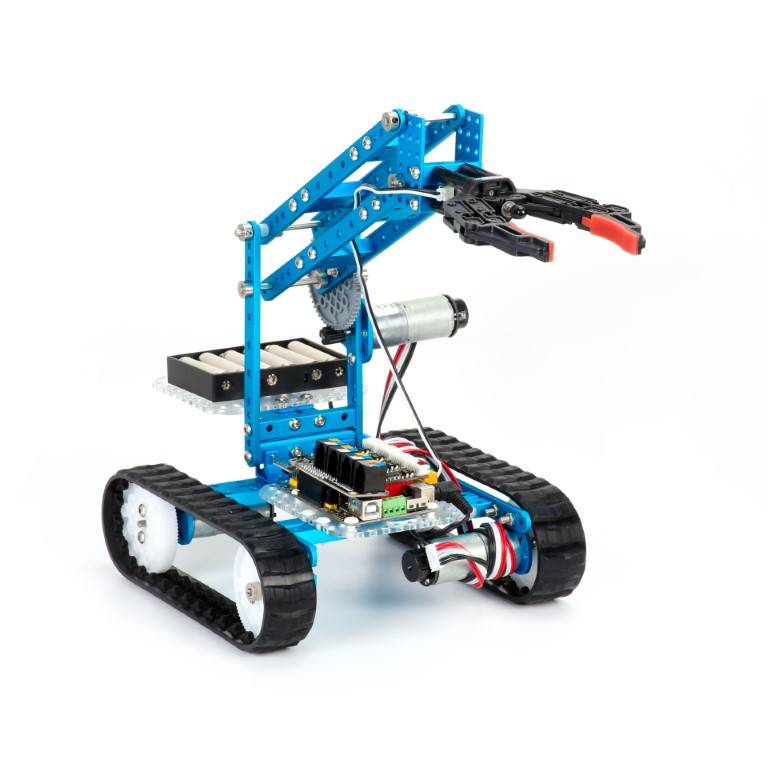

  Ultimate robot building kit has more than 160 mechanical parts and electronic modules which can be used to build your own robot for different robotics projects such as a robot arm, RC tank. There are many user guides and learning resources available online which make it easier to build and code.


• Programming Learning for All Level

  Ultimate building toys support Scratch block-based programming and the Arduino IDE. You can also combine with Raspberry Pi to realize Python programming and coding games. The free mBlock programming software enables you to program your coding robot by simply dragging and dropping blocks. Both coding newbies & veterans can have fun with it.

• Compatible with Arduino & Raspberry Pi

  Ultimate's main control board MegaPi is compatible with Arduino & Raspberry Pi. With the powerful MegaPi, it can realize high-level functions such as synchronous drive and control of multiple motors and servos, sensor reading, and Raspberry Pi communication. You can achieve many ideas and make various robotics projects with it. Please note that this robot needs 6pcs AA batteries or lithium batteries (NOT INCLUDED).

• Industrial Grade Aluminum Alloy Parts

  Most parts of the Ultimate robotics kit are made of high-strength aluminum alloy. These parts adopt an environmentally friendly and non-toxic anodic oxidation dyeing process, which is safe, light, solid, and durable. Mechanical parts are designed with thread grooves, suitable for the maker and industry-standard parts.


Features:

• Ten building forms will meet all your need for different application scenes

• Great for learning robotics, electronics, graphical programming, Arduino programming and Python programming

• Anodized 6061 aluminum mechanical parts with threaded-slot design brings an easy way of building the robot

• Three powerful encoder motors enable you to feel every step of the robot

• Wirelessly control your robot with smart devices through Bluetooth connection

• Powerful MegaPi main board


Programming and Control:

• Smart phone app (free)

• Scratch (Visual programming for children)

• Arduino


  Parts List:

  • 4 × Beam0824-016

  • 6 × Plastic Timing Pulley 90T

  • 4 × Screw M4×22

  • 5 × Beam0824-032

  • 3 × Plastic Gear 8T

  • 4 × Screw M4×30

  • 3 × Beam0824-064

  • 2 × Plastic Gear 56T

  • 47 × Nut M4

  • 2 × Beam0824-128

  • 2 × Plastic Gear 72T

  • 10 × Nylon Lock Nut M4

  • 1 × Slide Beam0824-176

  • 1 × 360°Mobile Phone Bracket

  • 1 × 25mm DC Encoder Motor 9V/86RPM

  • 2 × Slide Beam0824-192

  • 2 × Track 80×139mm

  • 2 × 25mm DC Encoder Motor 9V/185RPM

  • 2 × Beam0808-024

  • 1 × Battery Holder 6AA

  • 1 × Makeblock Robot Gripper

  • 2 × Plate0324-056

  • 12 × Flange Copper Sleeve 4×8×4mm

  • 3 × 25mm DC Encoder Motor Cable

  • 3 × Plate0324-088

  • 12 × Shaft Collar 4mm

  • 1 × MegaPi

  • 4 × Beam0412-076

  • 6 × Threaded Shaft 4×39mm

  • 4 × MegaPi Encoder/DC Motor Driver

  • 4 × Beam0412-092

  • 2 × 4mm D shaft 50mm

  • 1 × MegaPi Shield for RJ25

  • 4 × Beam0412-140

  • 2 × Shaft D4×88mm

  • 1 × Bluetooth Module

  • 6 × Beam0412-188

  • 1 × 4mm D shaft 160mm

  • 1 × Me Ultrasonic Sensor

  • 2 × Beam0412-220

  • 4 × Brass Stud M4×16

  • 1 × Me Line Follower

  • 2 × Bracket P3

  • 4 × Plastic Ring 4×7×2

  • 1 × Me Shutter

  • 3 × 25mm DC Motor Bracket

  • 8 × Plastic Ring 4×7×3

  • 1 × Me 3-Axis Accelerometer and Gyro Sensor

  • 4 × Bracket 3×3

  • 2 × Plastic Ring 4×7×10

  • 1 × Me Adapter

  • 2 × Plate 3×6

  • 20 × Plastic Rivet 4060

  • 1 × USB Cable B-1.3m

  • 1 × Plate 7×9-B

  • 20 × Plastic Rivet 4100

  • 2 × 6P6C RJ25 Cable-20cm

  • 6 × Shaft Connector 4mm

  • 20 × Plastic Rivet 4120

  • 1 × 6P6C RJ25 Cable-35cm

  • 4 × Stiffener1616-08-M4

  • 12 × Headless Set Screw M3×5

  • 10 × Rubber Bank

  • 1 × Plane Bearing Turntable D34×24mm

  • 8 × Headless Set Screw M3×8

  • 10 × Nylon Cable Tie 1.9×100

  • 1 × Quick Release Plate

  • 6 × Countersunk Screw M3×8

  • 1 × Cross&2.5mm HEX Screwdriver

  • 2 × 25mm Motor Bracket-72T

  • 4 × Countersunk Screw M3×10

  • 1 × Small Four-way Socket Wrench

  • 2 × MegaPi Acrylic Bracket

  • 50 × Screw M4×8

  • 1 × Wrench 5mm&7mm

  • 4 × Rubber Blanket

  • 46 × Screw M4×14

  • 1 × HEX Key 1.5mm

  • 4 × Tire 90T B

  • 10 × Screw M4×16


  Ultimate 2.0 Technical Specifications :

• Main control : MegaPi

• Processor core : ATMEGA2560-16AU

• Process clock speed : 16 MHz

• Sensor : Ultrasonic sensor, line follower sensor, gyroscope, shutter module

• Coding language : Block-based, Arduino, Python (Extra Raspberry Pi Needed)

• Battery (Not included) : 6 AA batteries or rechargeable LiPo battery

• Battery capacity : 2600 mAh

• Playtime : ≈ 1-2 hours

• Charging time : 1.5 hours

• Rotational speed : 185 RPM

• Maximum external electronic modules : 11 motor & servo ports 5 sensor ports

• Communication mode : USB, Bluetooth, 2.4G

• Compatibility : 500+ makeblock electronic & mechanical parts, Arduino sensors, LEGO bricks, Raspberry Pi
