Makeblock mTiny Robot

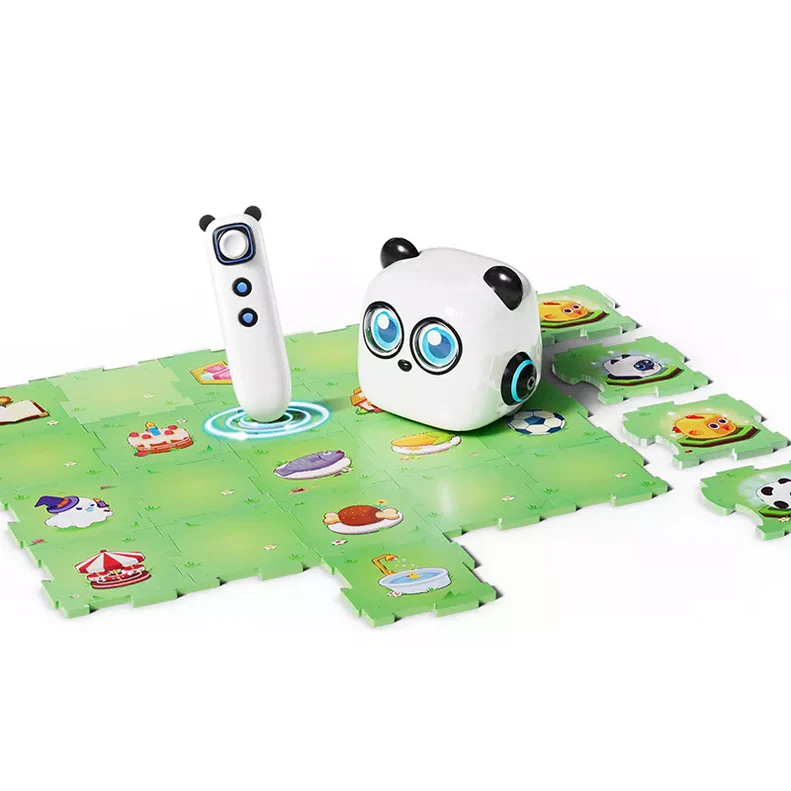

The mTiny robot kit is Makeblock's first screen-free robot developed for preschoolers. With the tap pen controller, coding cards, and themed maps, children can tap to code and begin their learning in math, English, music, and other subjects while playing games.


• mTiny Discover designed for 3-6 year olds based on learning and development guide and Multiple Intelligences theory.

• Integration of diversified knowledge enhances children's learning experience in games.

• Enables point-and-click physical programming and active exploration.

• Stimulates interest in self-directed learning and problem-solving skills.

• Cultivates creative and integrative thinking, developing lifelong learning abilities.

• Precise drawing function with one-click and step-by-step math drawing.

• Multiple Intelligences Theory applied for logical thinking and problem-solving skills.

• Interactive map and tap pen controller for fun and learning.

• Coding games for different levels promote logical thinking and problem-solving skills.

• Fusion of cross-curricular contents, exposing children to math and music concepts.

• Screen-free coding solution, utilizing multisensory learning.

• 100% safe with eco-friendly and nontoxic materials, rounded corners design.

• Lead-free and RoHS certified, great performance in reliability testing.

• Changeable look with emotions, sound effects, and cool motion skills for lovable experience.


mTiny robot

The outer cover of the mTiny robot is made of eco-friendly ABS plastic, with food-grade silicone for its ears, which is safe for children in case they bite it. Its eyes adopt a color LCD screen, with more than 10 factory images. The circle lights on both hands are RGB lights with 16 million colors. Red, green, and blue light means a different state of the mTiny robot. On its back, from top to bottom, there is a speaker and a knob. The speaker can play more than 300 factory sounds. The knob is also the switch and can be used to change the volume: by turning it clockwise, you can turn on the mTiny robot and increase the volume; and by turning it counterclockwise, you can decrease the volume and turn off the mTiny robot. Its motors are high-precision encoder motors with intelligent motor algorithms so that mTiny can turn corners perfectly.


 mTiny Robot Technical Specifications:

• Battery: 1800mAh Li-Po

• Input voltage: 5V

• Input current: 1.5A

• Output equipment: 2 encoder motors, 1.4W Hi-Fi speaker, 2 LCD eyes, 8 RGB LEDs

• Sensors: OID sensor, 6-axis motion sensor

• Communication: 2.4 GHz wireless

• Dimensions: 114 x 106.5 x 98 (mm)

Tap pen controller

The tap pen controller is also made of eco-friendly ABS plastic, and its circle LED is made of high-fidelity material with red, green, and blue colors, which indicates three different modes. From top to bottom of the tap pen controller, there are two black ears made of food-grade silicone, a white joystick that can control mTiny to move forward and backward and turn left and right, a confirmation button below the joystick, a stop button below the confirmation button, and an OID sensor at the bottom for recognizing maps and command cards. The power button is on the side. The tap pen controller has a nice touch feeling with a corner-rounded design.

Pen Controller Technical Specifications: :

• Battery: 300mAh Li-Po

• Input voltage: 5V

• Input current: 270mA

• Equipment: OID sensor, 6-axis motion sensor, dual-axis joystick, 2 buttons, 6 LED indicators

• Communication: 2.4GHz wireless

• Dimensions: 120 x 35.5 x 31 (mm)
